Crystal structure of cubic boron nitride
|
|||
 |
|||
|
|
|

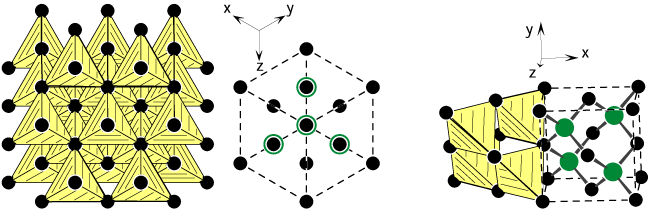

Figure 3: Crystal structure of c-BN. Two unit cells of the cubic structure are shown at the right-hand side. In the middle the structure is projected along one of the threefold axes (cube diagonal). At the left-hand side the tetrahedral environments around one kind of atoms is emphasized. Boron and nitrogen atoms occupy equivalent positions, hence the structure may be thought to be composed of NB4/4 as well as BN4/4 tetrahedra.
|
|
|
|
