Crystal structure of B6O
|
|
|
 |
|
|
|

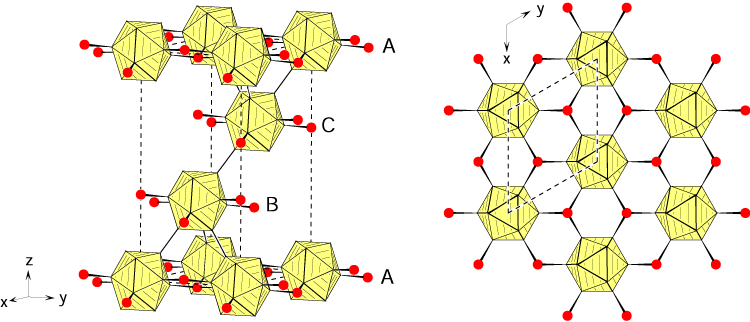

Figure 6:Crystal structure of B6O. On the right-hand side of the figure one layer of oxygen-bridged (empty) B12 icosahedra is outlined. The hexagonal cell of this rhombohedral structure and the stacking of subsequent layers is presented at the left-hand side.
|
|
|
|
